- Max Sample Rate: 12 GS/s (24 GS/s - interleaved)
- DAC Resolution : Mode 1: 8 bit (2 digital out /ch (markers), Mode 2: 10 bit (no digital out (markers)
- Max Memory Length: 32M / 64M/ch (option) x4 points (double at interleave, x8)
- Analog output: 1 (up to 24GS/s), 2 (up to 12GS/s)
- Rise/fall (20-80) (Typical) Standard: normal (350ps), direct out (75ps): High
- Bandwidth option (35ps)
- Bandwidth: (Typical) Standard: normal (0.75GHz), direct out (3.5GHz): High Bandwidth option (7.5GHz)
- Number of sequence steps: 16,000
- Marker outputs: 4
- 01: Waveform record length exp. (from 32M point to 64M point)
- 06: Interleaved output at 24GS/s(includes Option02 High-bandwidth output),( alternative for standard output)
- 08: Fast sequence switching(requires export control license) ECCN:3A002
- CH1의 Marker Level Fail. CH2 이상없음

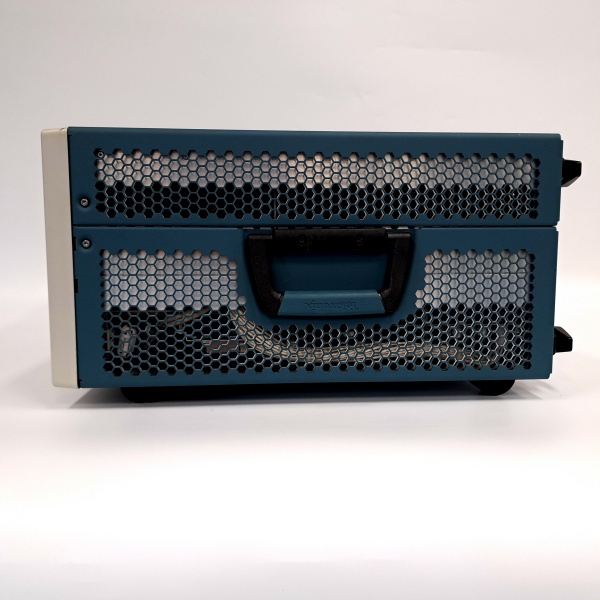

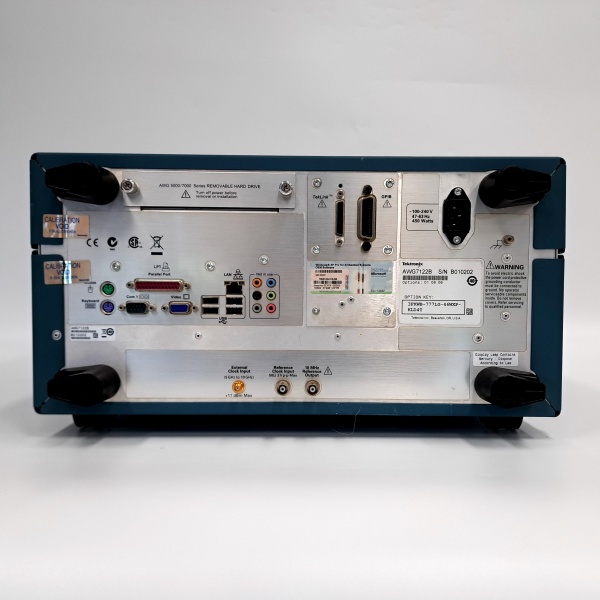

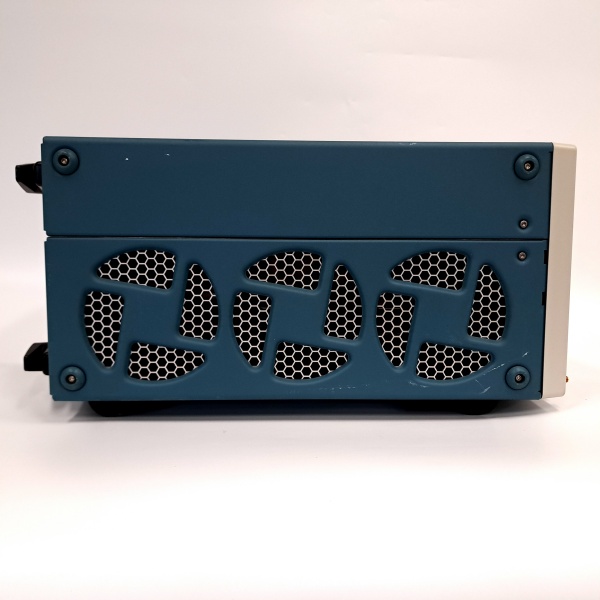

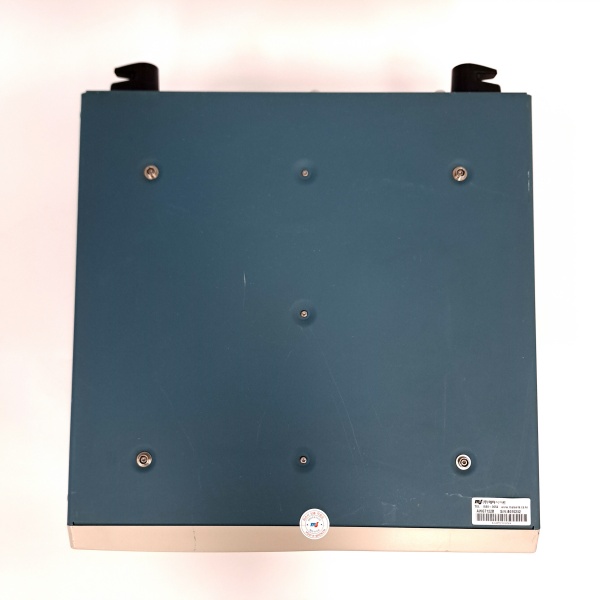

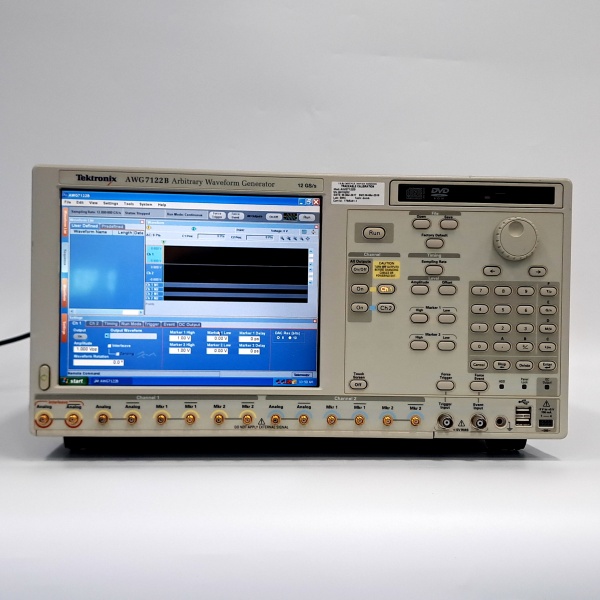

본 제품의 실제 사진입니다.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
|
|
|
|
|
|
|
)
제조사 : Tektronix
